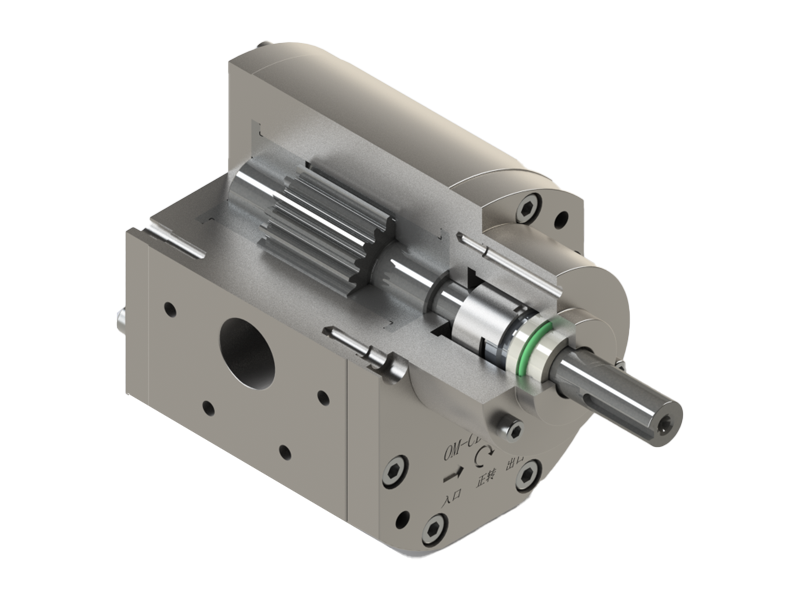

OM-CD低粘泵
●The gear pump is used to convey and meter materials with medium and low viscosity.
●It is suitable to convey and meter traditional chemicals and pharmaceuticals as well as polymer monomers, oligomers and prepolymers.
●Suitable for very low viscosity
●Accurate flow rate
●Precise structure
●Minimal pulsation
Gear
Stainless steel, carbon steel, tantalum alloy, titanium alloy, Hastelloy, ceramic;
Sliding Bearing
Carbon graphite, silver-nickel alloy, silicon carbide, zirconia, tool steel, copper-aluminum alloy, special materials and coated bearings.
Pump Body
Heat-resistant stainless steel, duplex stainless steel, duplex titanium, Hastelloy, etc.;
Shaft Seal
Mechanical seals, packing seals, spiral seals and combined seals;
▪Organic and inorganic chemicals: ethanol, additives, matrix, esters, glycerin, resin, hardener, isocyanate, monomer, oil, phenol, acid, biodiesel, asphalt, tar, hot melt adhesive, glue, Paraffin, lactic acid, etc.;
▪Polymer: acetate, nylon, prepolymer, etc.;
▪Food: vegetable oil, butter, margarine, condiments, chocolate, fudge, glycerin, chewing gum, vitamins, syrup, gum, etc.;
▪Pharmaceuticals and cosmetics: amino acids, moisturizers, shampoos, vitamins, etc.
| Viscosity | 0.0005-1000Pa.s |
| Temperature | Standard product ≤300 °C (580 °F) , specially designed products can reach higher temperature |
| Inlet pressure | Vacuum-1.5MPa(15bar) |
| Differential pressure | ≤12.0MPa(120bar) |
| Heating method | Steam, hot water, heat transfer oil, electric heating |
| The above values are the max ones allowed, which may not be reached under certain circumstances | |
| Model | ml/r | Model | ml/r | |
| CD-1 | 1 | CD-700 | 700 | |
| CD-3 | 3 | CD-800 | 800 | |
| CD-5 | 5 | CD-1000 | 1000 | |
| CD-10 | 10 | CD-1200 | 1200 | |
| CD-20 | 20 | CD-1400 | 1400 | |
| CD-30 | 30 | CD-1600 | 1600 | |
| CD-50 | 50 | CD-2000 | 2000 | |
| CD-100 | 100 | CD-2500 | 2500 | |
| CD-150 | 150 | CD-3200 | 3200 | |
| CD-200 | 200 | CD-4300 | 4300 | |
| CD-300 | 300 | CD-6300 | 6300 | |
| CD-400 | 400 | CD-8000 | 8000 | |
| CD-500 | 500 | CD-9000 | 9000 | |
| CD-600 | 600 | CD-12000 | 12000 |
（ For other specifications, please contact the supplier for details, special customization is available）
Mechanical
Packing
Spiral
